One fabricator. The whole glass schedule.
Smart glass is the headline; the plant behind it cuts, tempers and laminates the rest of the schedule to the same drawing discipline. One purchase order, one QC standard.
Tempered
Heat-treated safety glass for doors, storefront and rail — cut, drilled and edged before the furnace, because after is too late.
ASTM C1048 · 1/8–3/4 inLaminated
PVB and SGP interlayers for security, acoustics and overhead glazing, autoclaved in-house.
ANSI Z97.1 · 60 in max widthHurricane & impact
Impact-rated laminated assemblies for wind-borne debris regions and school security upgrades.
ASTM E1996 · Level DShower & enclosure
Low-iron tempered enclosures with polished exposed edges and hardware prep to template.
3/8 & 1/2 in · low-ironPartitions & office
Single-lite and double-glazed office fronts, sized to the framing system you already spec.
1/2 in typ · acoustic optsSwitchable PDLC
FlagshipPrivacy glass that clears under power. Laminated here, cycle-tested here, serialized here.
GLK-SG01 · < 100 msCustom & architectural
Oversize lites, holes and notches, printed frit, shapes from your DXF. Send the drawing.
DXF / DWG intakePrivacy at the flick of sixty-five volts.
A PDLC film laminated between two lites of low-iron glass: opaque white at rest, optically clear under power, switching faster than the eye tracks. Laminated in our own layup room — not a resold import — so busbar placement, edge deletion and wiring exits follow your drawings.
Every switchable panel is cycle-tested before it ships, and every one carries a serial for traceability.
Values typical for a 6+6 low-iron laminated build. Project-specific data certified at order.

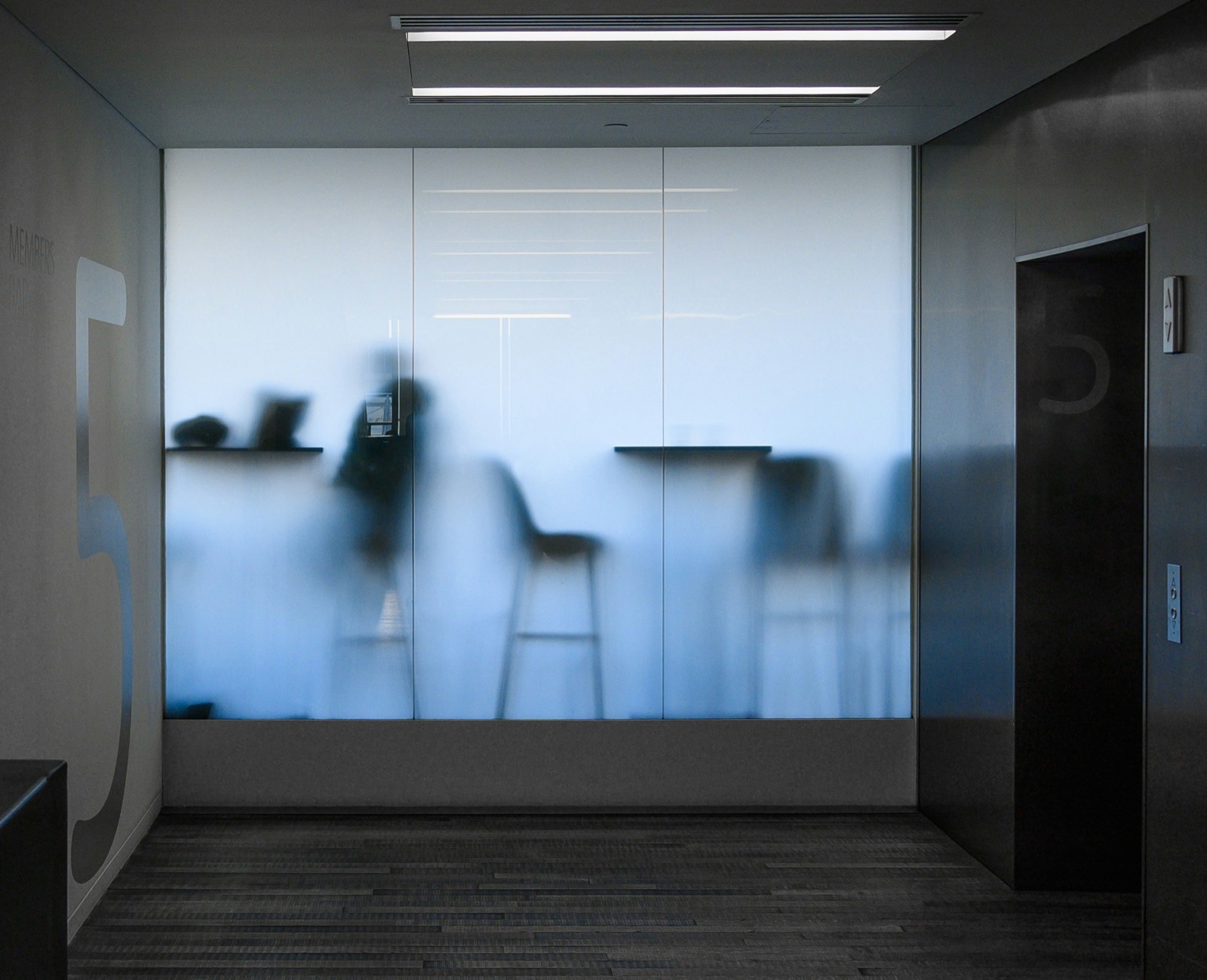

Private at rest, clear under power — a switchable conference wall
Where the glass goes.

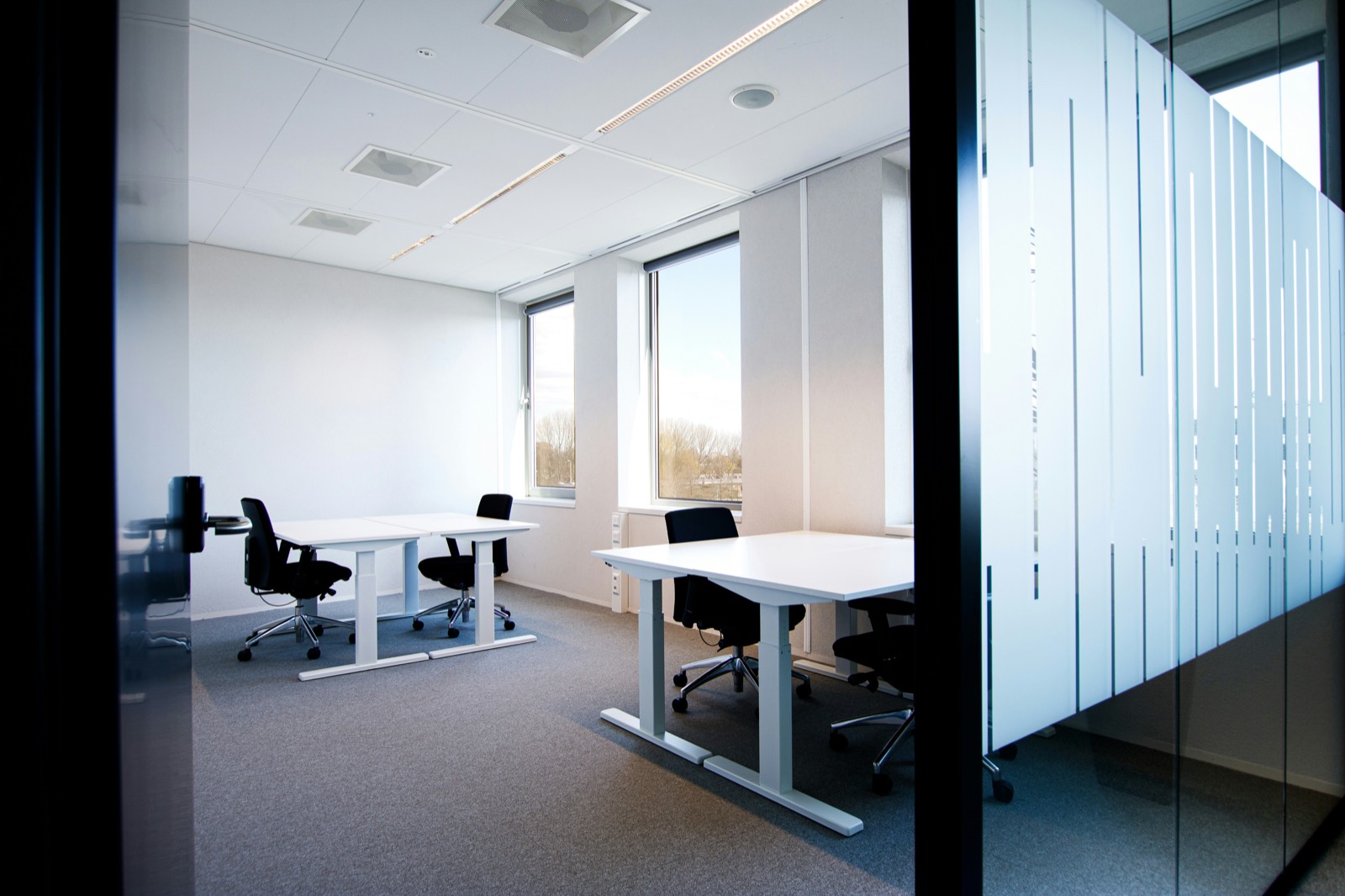

Office partitions
Daylight deep into the floor plate without giving up acoustic separation. Butt-glazed runs, sliders and framed fronts, with switchable lites where meeting privacy matters.
Built here. Measured twice.

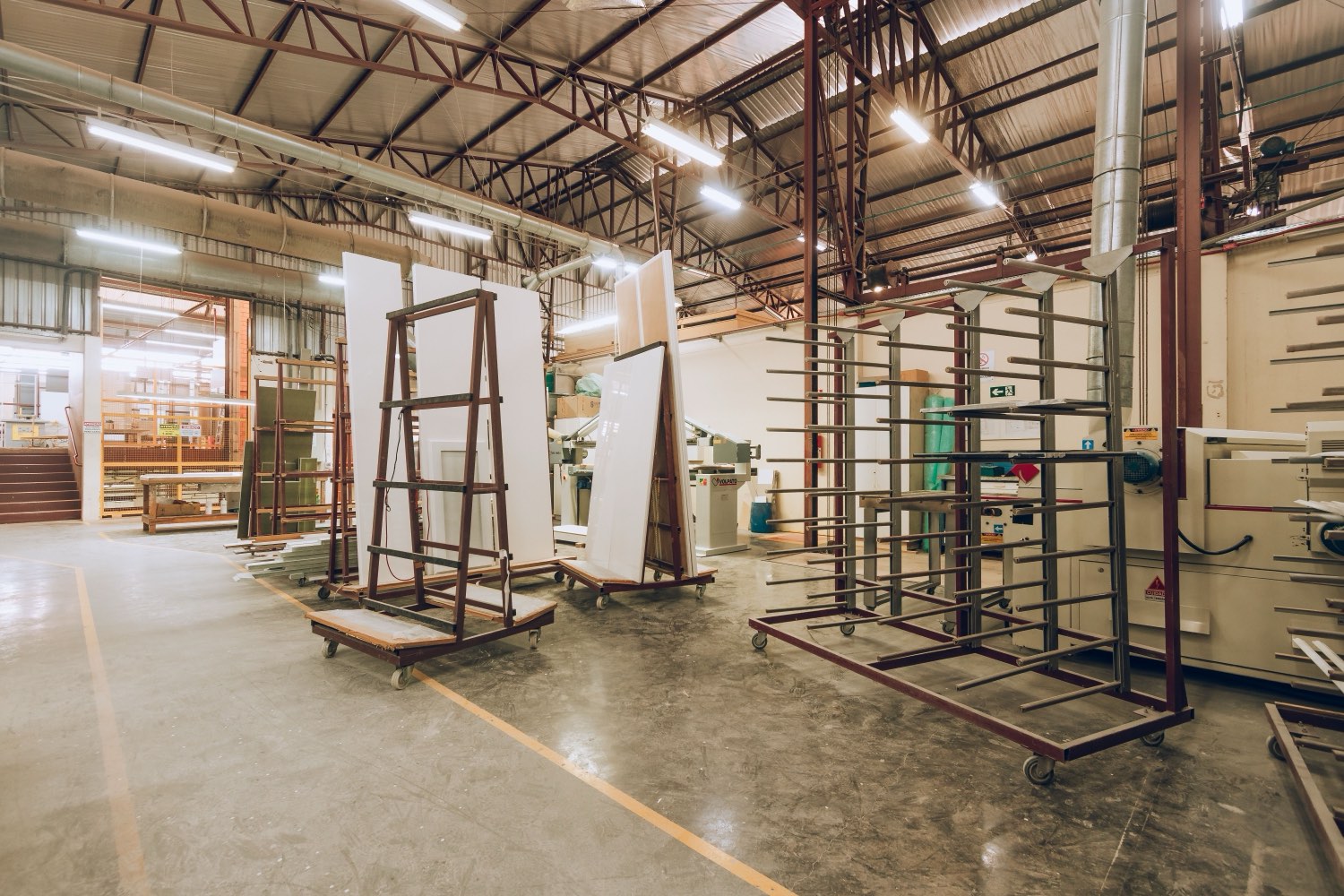

One line, one QC standard — cut, edged, tempered and laminated under one roof
Texas-made, short lead
Fabricated in North Texas, not trans-shipped. When a site dimension changes on Tuesday, the replacement lite doesn’t cross an ocean.
One PO, whole schedule
Tempered storefront, laminated partitions and the switchable conference wall come off one line, to one QC standard, on one delivery.
Tested and traceable
ASTM C1048 tempering, ANSI Z97.1 safety glazing, and a serial on every switchable panel tying it to its layup record and cycle test.
From float stock to finished panel.
Cut
Low-iron float stock is CNC-cut, drilled and notched to the drawing. Tolerance held to ±1/32 in — every hole placed before heat, because after tempering nothing moves again.
Edge & polish
Flat polish or pencil edge to spec; every edge belt-seamed before the furnace. Edge quality decides whether a lite survives the quench.
Temper
Horizontal furnace at 620 °C, then air quench to ASTM C1048 FT. Surface compression is what turns a pane into safety glass.
Wash & inspect
De-ionized wash and optical scan. Surface defects fail here, on our floor — not on your site during punch list.
Laminate
PVB, SGP or PDLC film laid up in a climate-controlled room, then autoclaved. Busbars and wiring exits land exactly where the shop drawing put them.
Test & ship
Every switchable panel is cycled before crating and tagged with a serial tying it to its layup record. Crated vertical, delivered on our schedule commitment.
Send the drawings. We'll price the glass.
Project / quote inquiry
Attach plans or a glass schedule. Quotes returned within two business days.
Request a quoteSmart glass sample
A working switchable coupon with driver, shipped to your office or site trailer.
Request a sampleArchitect resources
CSI 3-part specs (08 88 00), CAD details, Revit families and datasheets.
Access downloads
